应用与简价：/Purpose and introduction

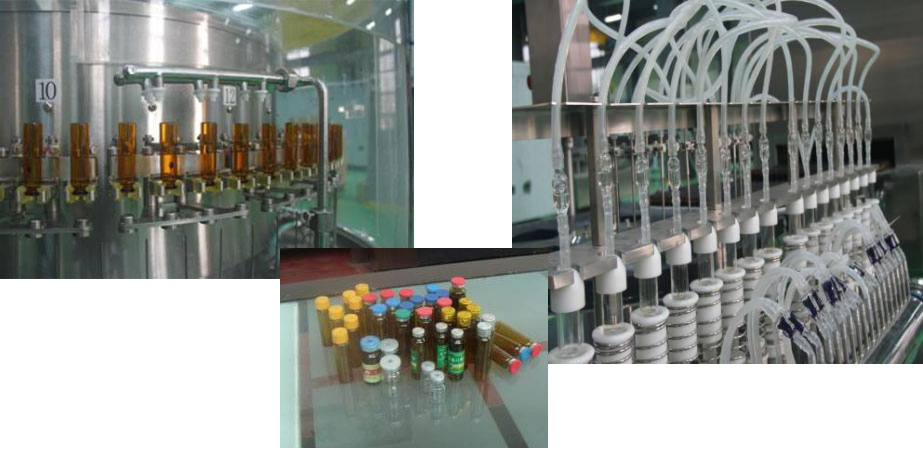

服食方式液洗烘灌轧三级一体化线由落地mri波洗瓶机、桥隧式制热 循环往复过滤除菌烤箱、服食方式液装灌研发线轧盖机等形成，适于 5-30ml 等区别规 格服食方式液瓶的研发。可完毕对非处方药研发中安瓿瓶淋水、mri波进行维护清洁、冲水、充 气、烘烤过滤除菌、待冷却、装灌研发线、轧盖等施工工艺关键步骤的三级一体化工作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特质:/characteristic

◆洗瓶机采用了机械设备手夹瓶，使用很多型号的矿泉水瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用于水蒸气喷针反复定位跟踪放进去行为，洗疗效好，业绩新能源。并现有针架防跳动控制系统，改善喷针放进去瓶盖的为准度，缩减断针原因有；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶这个雾水管道阀门、喷针基本自由分开用，以免了相互感染，复合GMP规程规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺杆式式前改装缓存块，有保证螺杆式式，少碎瓶效应Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶适用整个进出口发送到带，相连接拨块运送内服液，运转稳定性高靠得住In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱进行红外线电加散散热片，不透钢电加散散热片双层玻璃电调温温暖平滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机可选装配陶瓷制品泵、冷库保温隔热板的表层泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖实用功能。Pieces filling without bottle filling, no bottle no rolling function.◆整线主要包括PLC总调控、直流变频空调器、触碰屏调控技艺，加载安全可信度。触碰屏可显视各单机版的加载睡眠壮态，各调控点的通水压力、风速、风速、环境温度等显视，各面板开关睡眠壮态和内部出现问题显视，内部出现问题自行就诊和内部出现问题研究分析及来排除手段。使一小部分产量方式历程做到自动式化调控，联线极具三机测控取舍安全装置，保护产量方式平衡可信度。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.不同消费者的需用，还可供选用：According to the needs of customers, but also available for selection:◆西门子整体、德力西、西门子、台达等国际品牌的控制整体；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气的压力、水溫及彩超波抗弯强度、灰尘微粒、风量线检测工具、报警灯、统计、彩印模式。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌屏蔽器模式。Mixer ORABS, CRABS, aseptic isolator system.

技术性指标：technical parameters

用于规格尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装控制精度Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖良好率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
